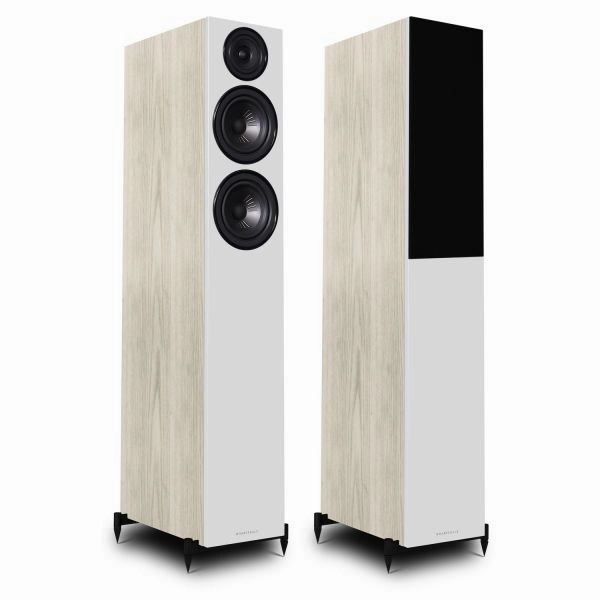

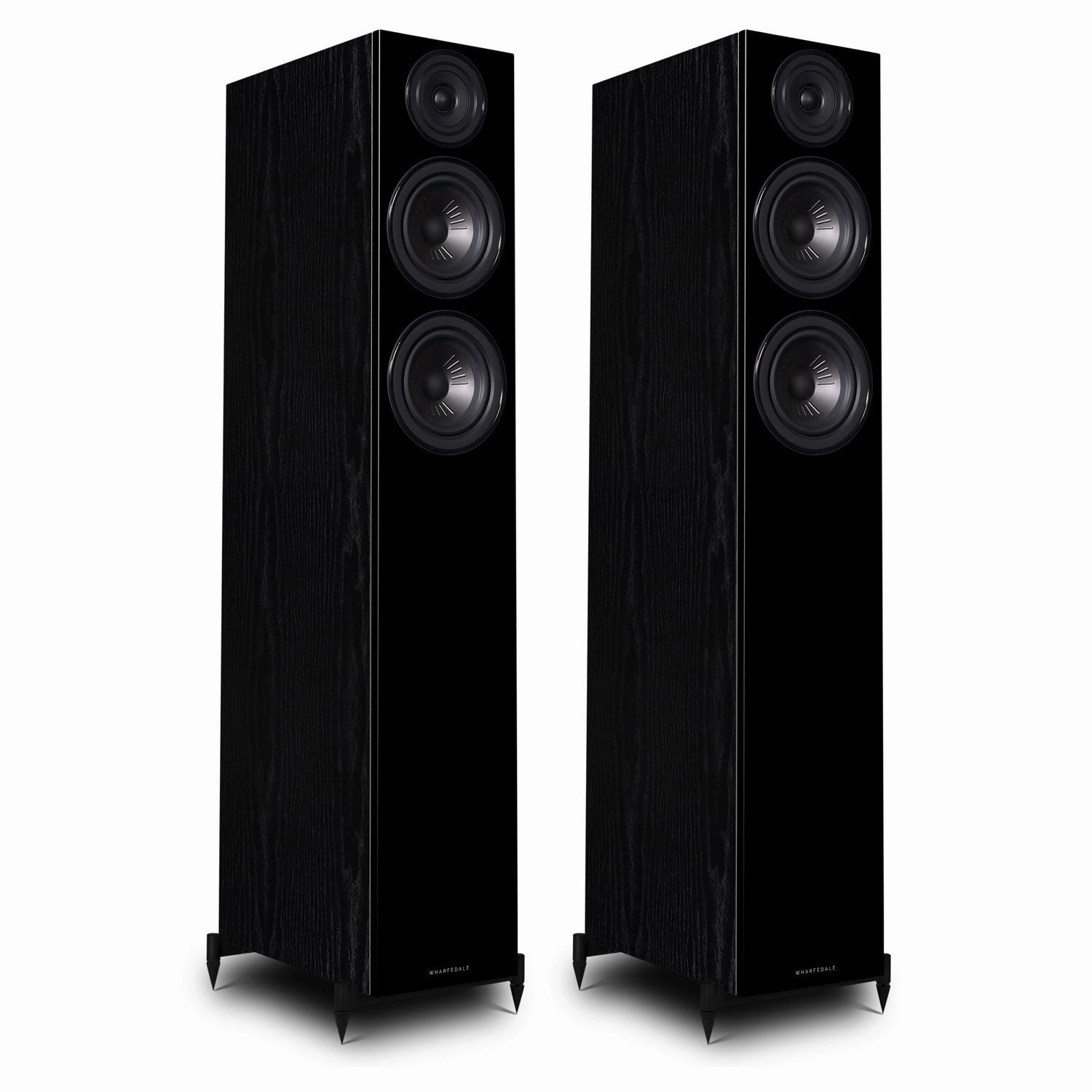

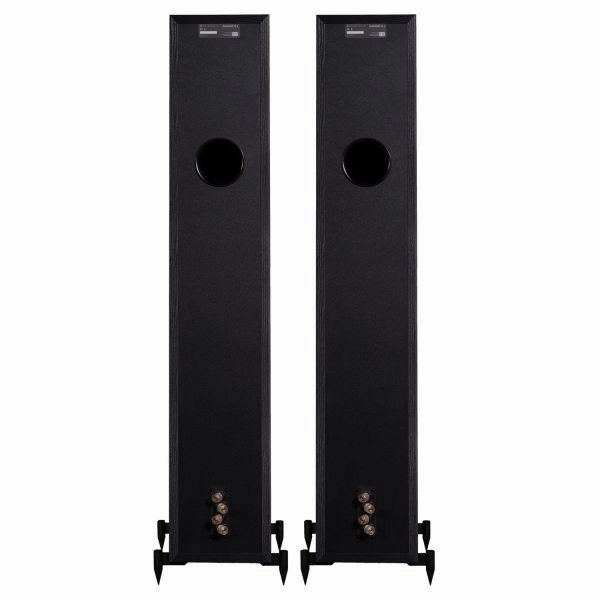

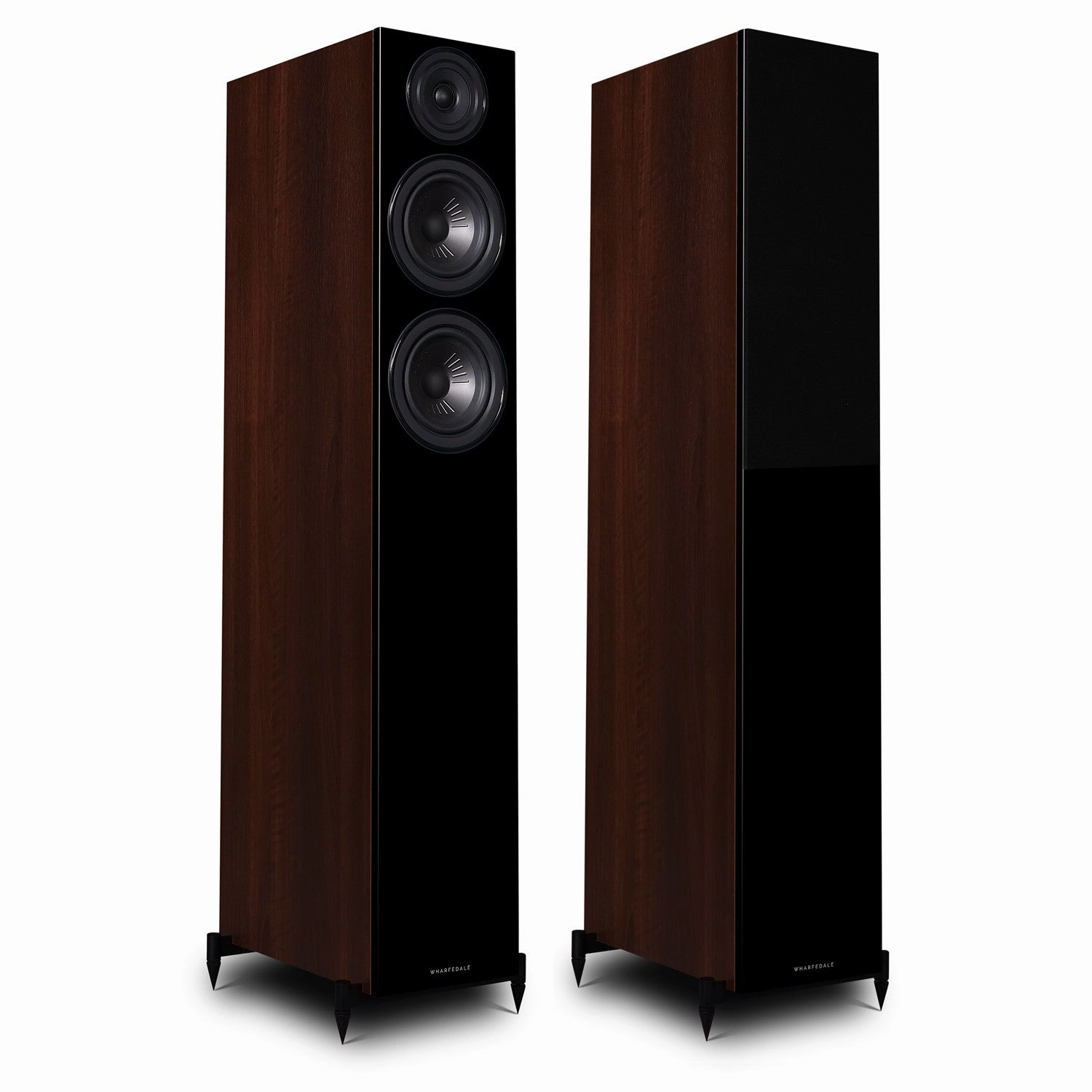

Wharfedale Diamond 12.4 Floorstanding Speaker
Please confirm colour availability beforehand
The powerhouse model of the Wharfedale DIAMOND 12 series, the DIAMOND 12.4 is the room-filling, chest-pounding, largest model in the series.
For larger, more powerful systems and cinema-style home theatre experiences, the DIAMOND 12.4 will fill your room with an impactful, immersive performance.
Configured in a 2.5 way system with exception crossover technology, the DIAMOND 12.3 utilises dual 150mm (6.5) KlarityTM drivers for impactful yet refined mid-range and bass frequencies, while the 25mm (1) dome tweeter delivers open and smoothly extended high frequencies.
Klarity aords focus
NEW Klarity cone material, formulated from a blend of Polypropylene and mica adds stiness to reduce exing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
Low colour and expression
The Klarity cone is tted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many dierent cone shapes and adding ribs to provide further stiening, a at response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
A magnet of forces
A precision-made magnet system with an aluminium compensation ring to minimise the eect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the motor system.
Specifications:
General description | 2.5-way oorstanding speaker |
---|---|
Enclosure type | bass reex |
Bass driver | 6.5"(150mm) advanced PP Cone |
Midrange driver | 6.5"(150mm) advanced PP Cone |
Treble driver | 1"(25mm) Textile Dome |
AV shield | No |
Sensitivity(2.83V @ 1m) | 89dB |
Recommended amplier power | 30-200W |
Peak SPL | 102dB |
Nominal impedance | 8 Compatible |
Minimum impedance | 5 |
Frequency response( /-3dB) | 40Hz ~ 20kHz |
Bass extension(-6dB) | 35Hz |
Crossover frequency | 2.1kHz |
Cabinet Volume (in litres) | 40.8L |
Dimensions ( H x W x D ) | (1100 50) x 200 x (350 28) mm |
Net weight | 22.4kg/pcs |
