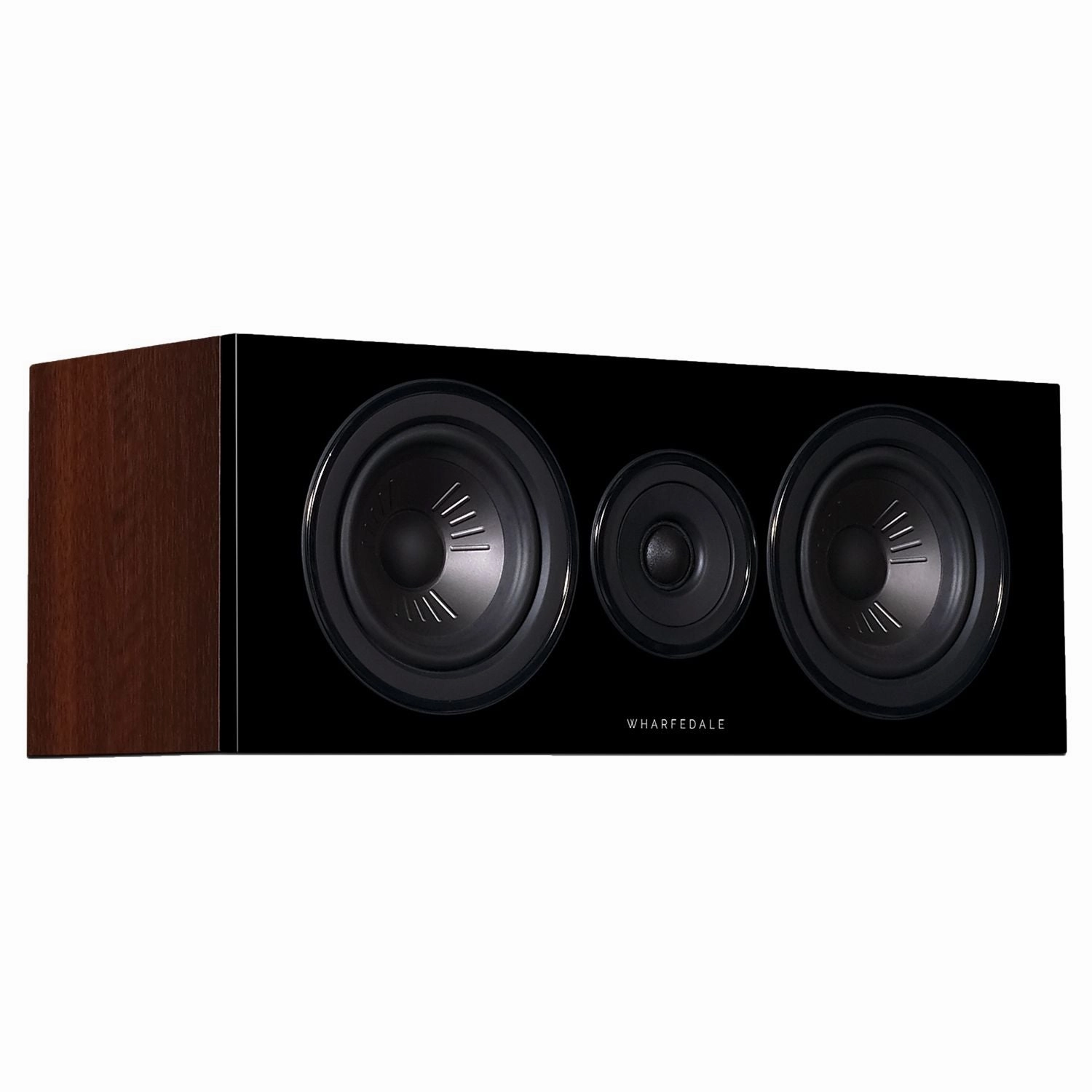

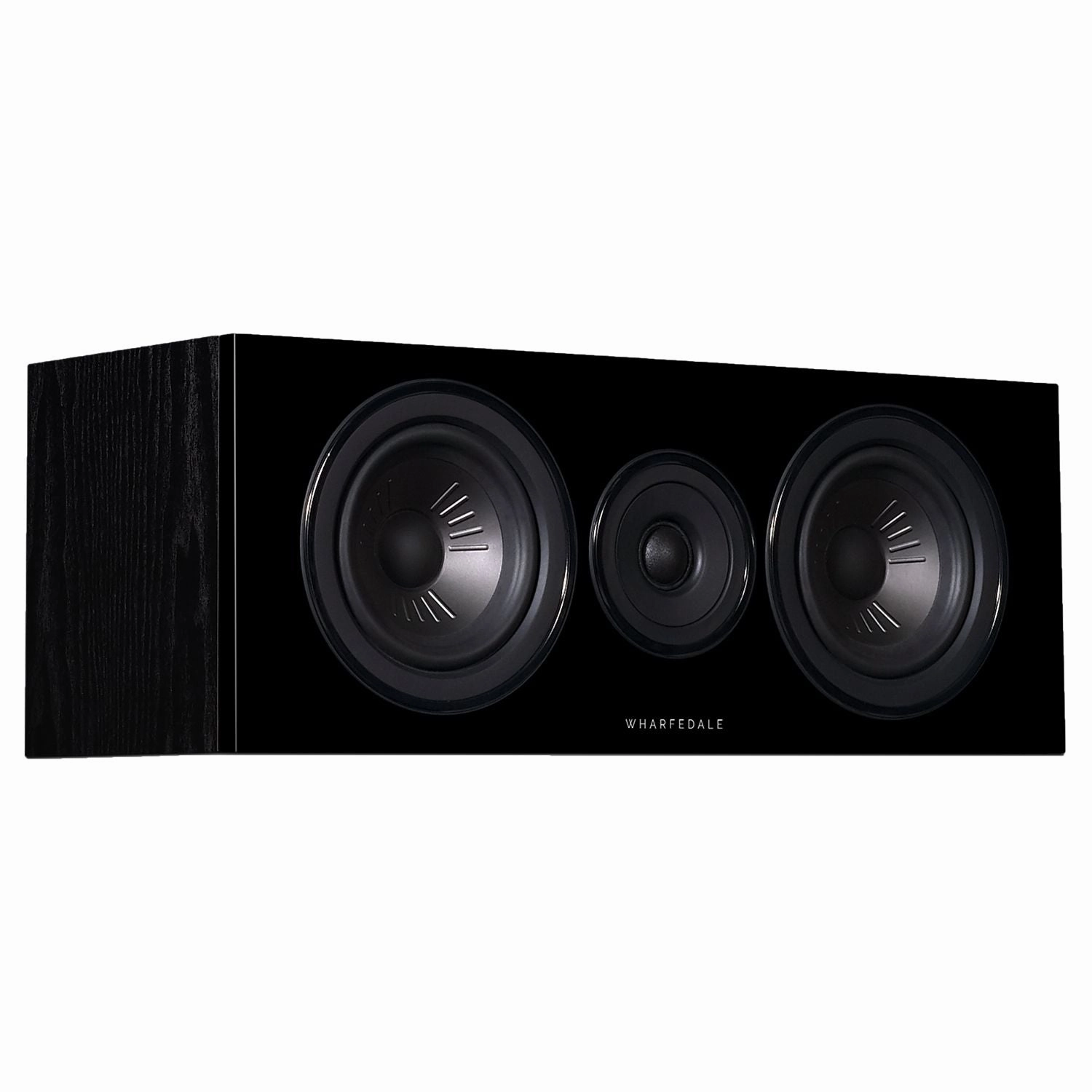

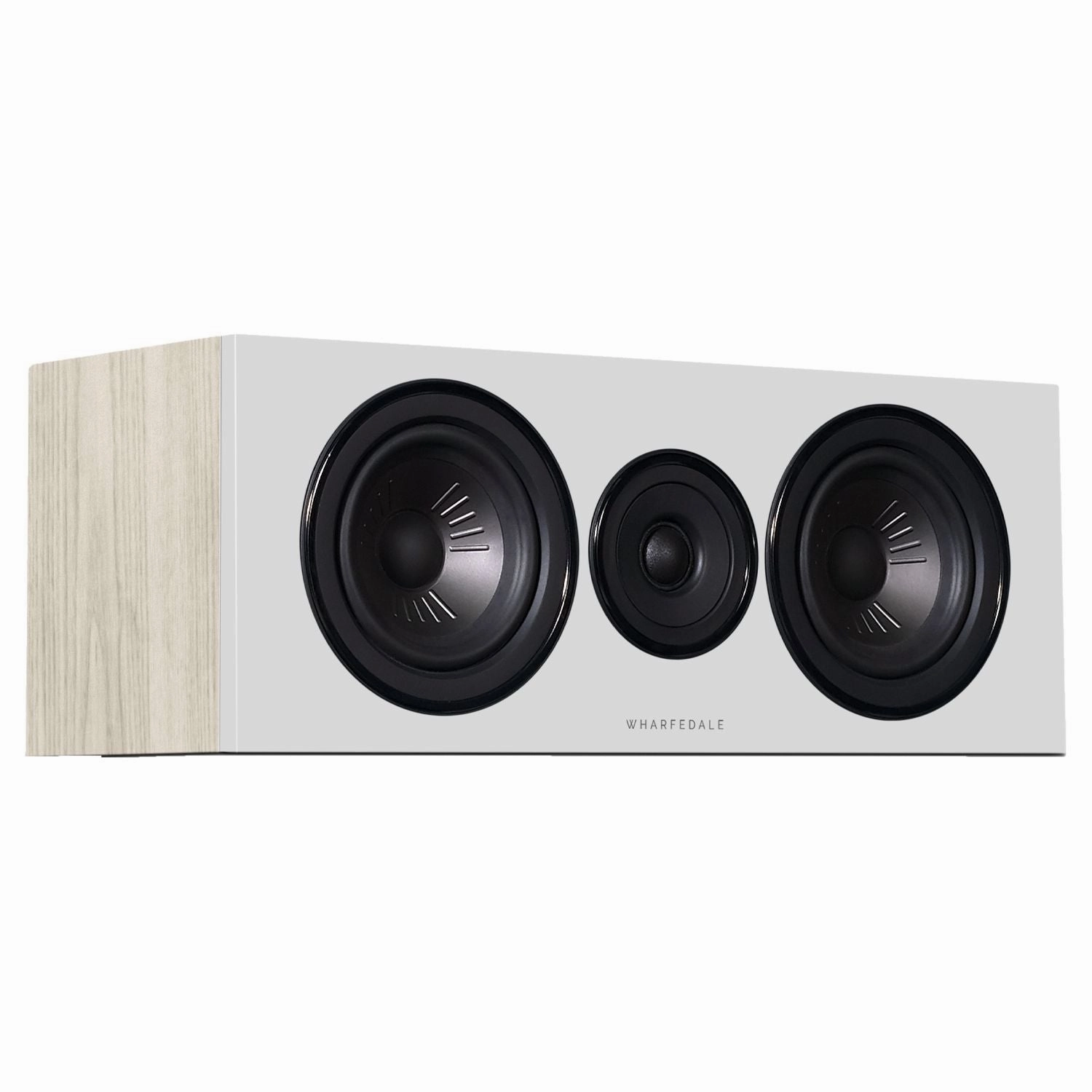

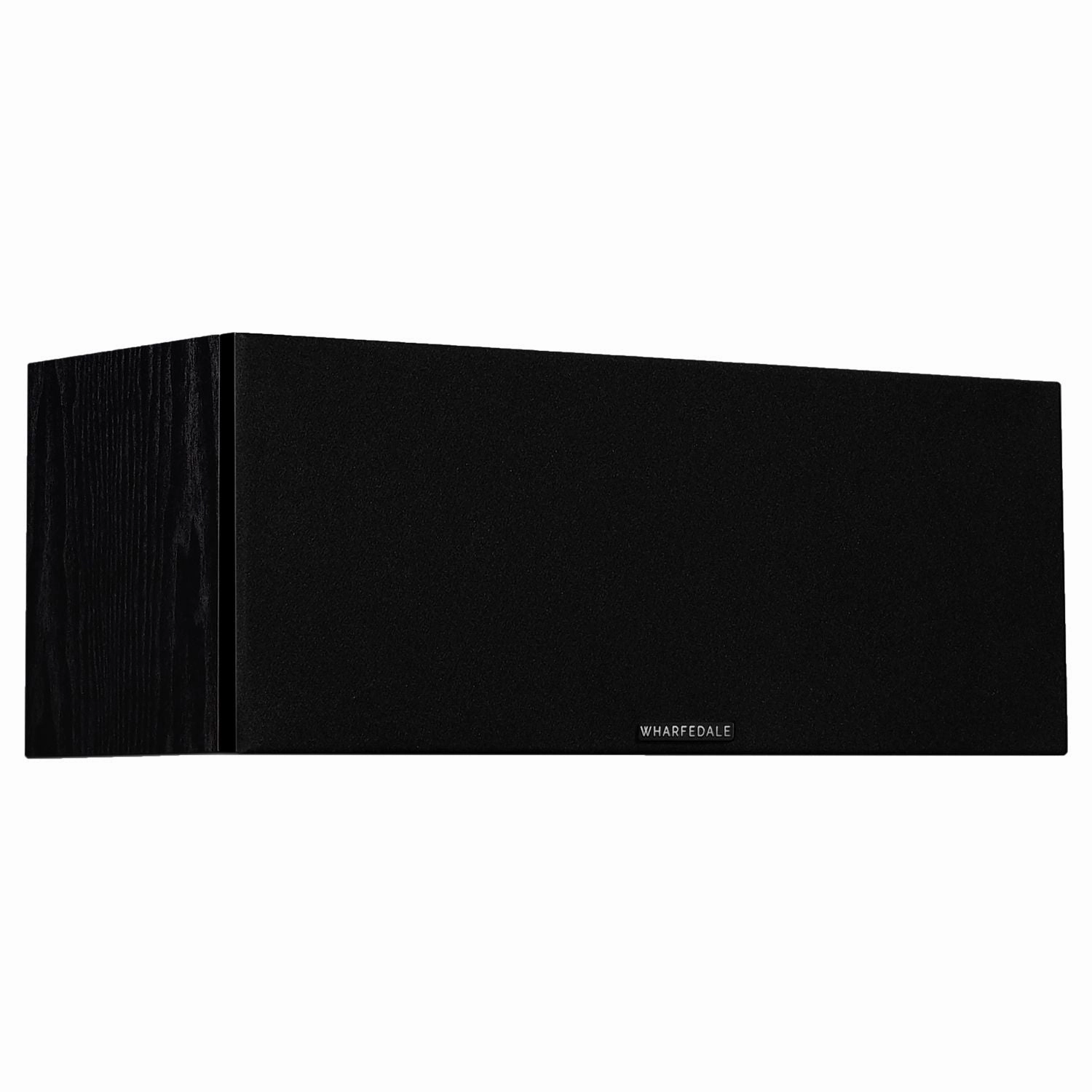

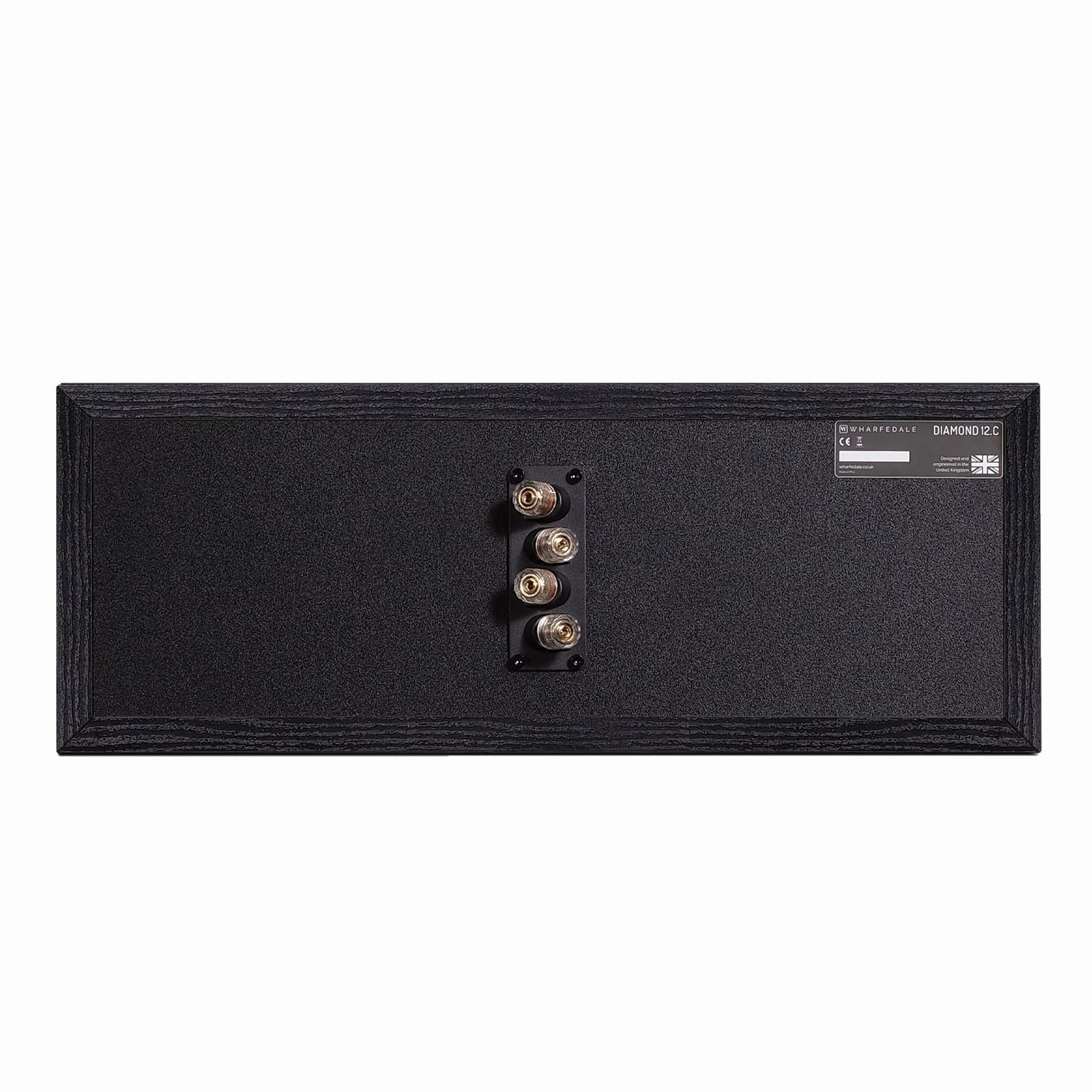

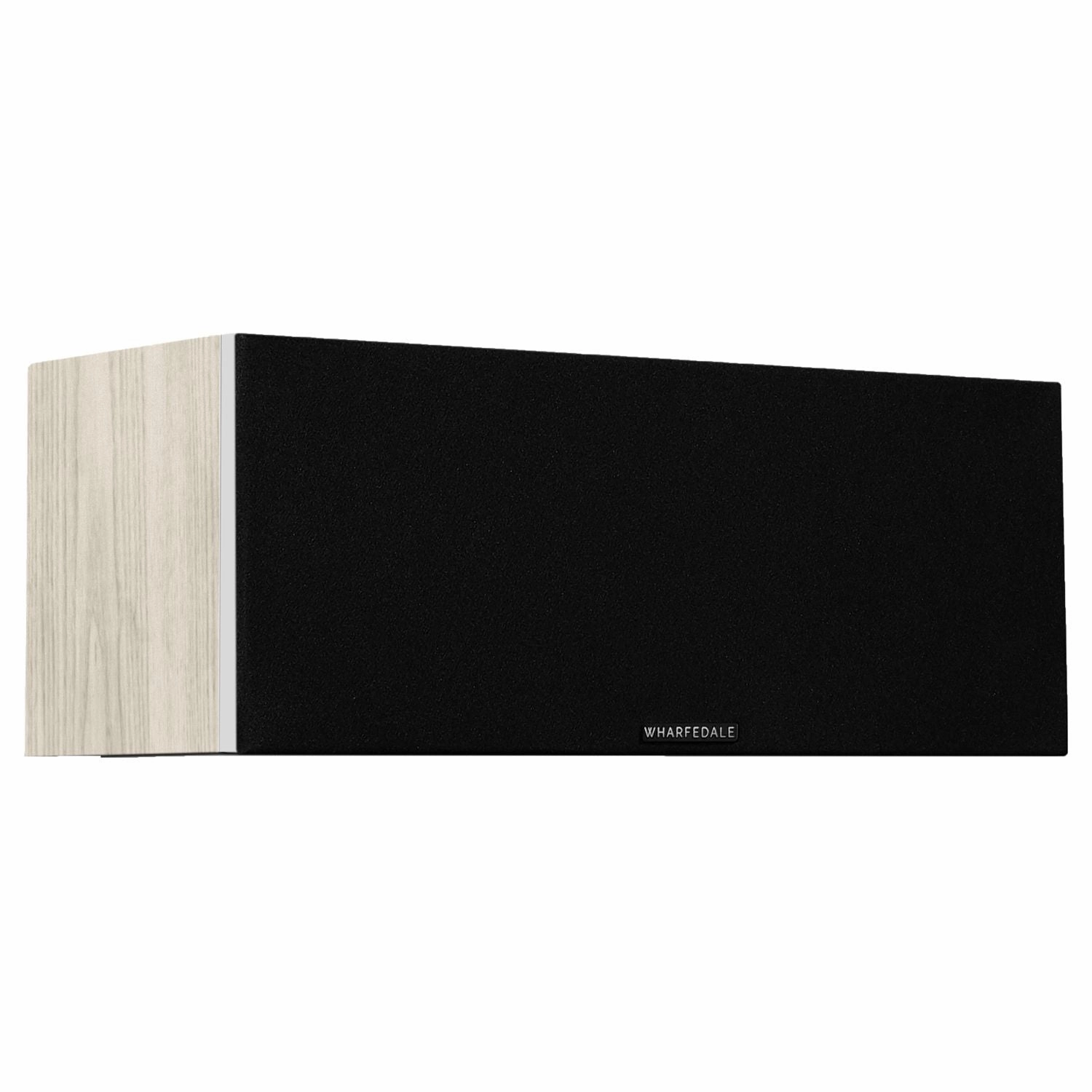

Wharfedale Diamond 12.c Centre Speaker

Wharfedale Diamond 12.c Centre Speaker

$ 40.73

$ 162.90

Unavailable
Wharfedale Diamond 12.c Centre Speaker

Wharfedale Diamond 12.c Centre Speaker

$ 40.73

$ 162.90

Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Wharfedale Diamond 12.c Centre Speaker - each

Please confirm colour availability before hand.

The DIAMOND 12.C brings cinema-quality vocal tangibility and depth to the Wharfedale DIAMOND 12 series home theatre system.

Designed as the centrepiece and perfect complement for the DIAMOND 12 series standmount (bookshelf) and floorstander models, the DIAMOND 12.C is compact, accurate and powerful.

Using dual 130mm (5) KlarityTM drivers for accurate, refined mid-range and bass frequencies, while the 25mm (1) dome tweeter delivers open and smoothly extended high frequencies opening up detail and depth for movies, sports and music.

Klarity aords focus

NEW Klarity cone material, formulated from a blend of Polypropylene and mica adds stiness to reduce exing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.

Low colour and expression

The Klarity cone is tted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many dierent cone shapes and adding ribs to provide further stiening, a at response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.

A magnet of forces

A precision-made magnet system with an aluminium compensation ring to minimise the eect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the motor system.

Specifications:
General description2-way bookshelf speaker
Enclosure typeclosed-box system
Transducer complement2-way
Bass driver5"(130mm) advanced PP Cone x2
Treble driver1"(25mm) Textile Dome
AV shieldNo
Sensitivity(2.83V @ 1m)90dB
Recommended amplier power20-120W
Peak SPL96dB
Nominal impedance8 Compatible
Minimum impedance4.0
Frequency response( /-3dB)90Hz ~ 20kHz
Bass extension(-6dB)80Hz
Crossover frequency2.2kHz
Cabinet Volume (in litres)8.7L
Dimensions ( H x W x D )180 x 480 x (180 28) mm
Net weight8.5kg/pcs
