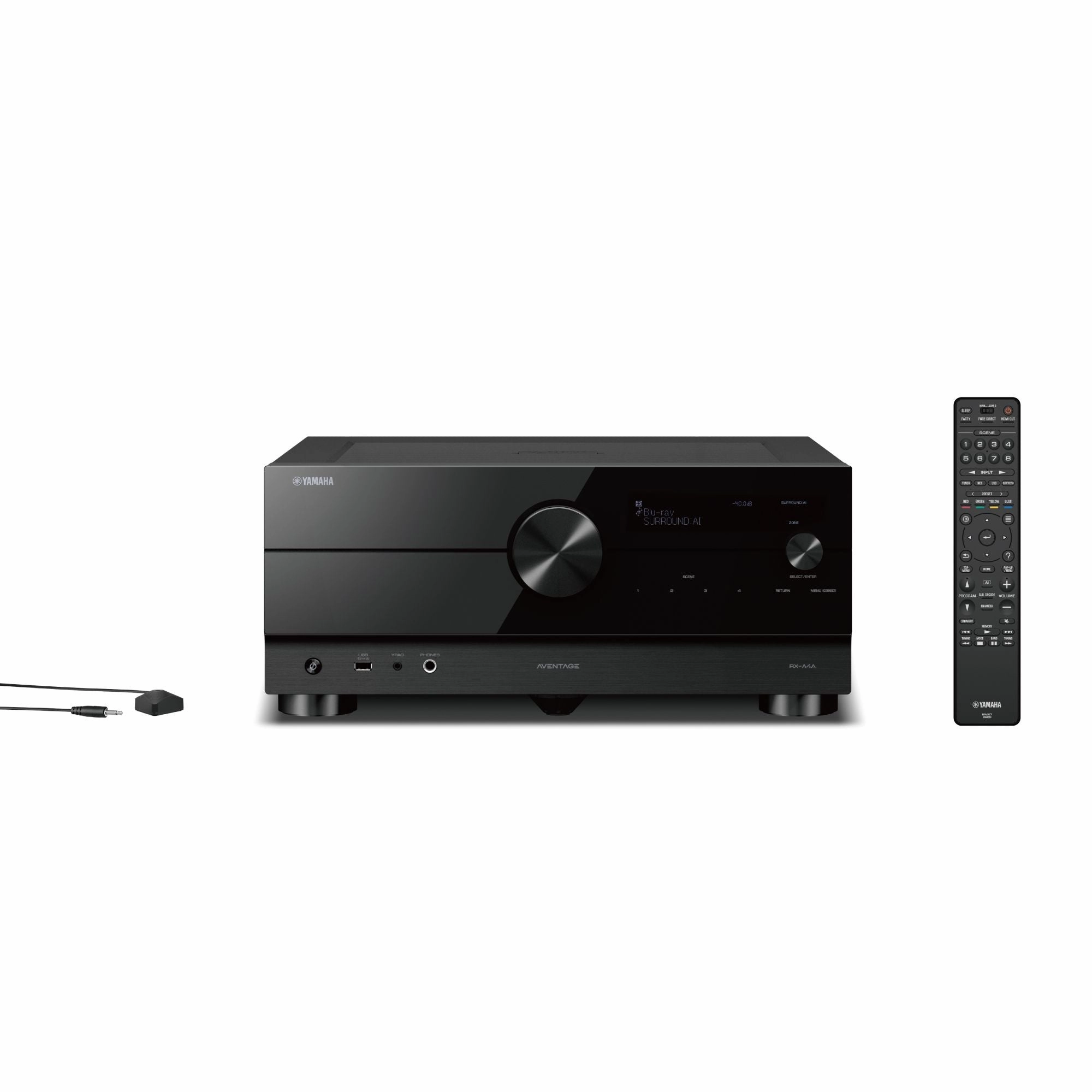

Yamaha RX-A4A 7.2 ch Aventage AV Receiver
A4A - 7.2 ch AVENTAGE with SURROUND:AI, HDMI 7-in/3-out, the latest QCS407.
- 7.2 Channel powerful surround sound with Zone2
- Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- Surround:AI automatically optimises the surround effect in real time
- Dolby Atmos and DTS:X with CINEMA DSP HD3
- YPAO-R.S.C. with multi-point measurement and precision EQ
- HDMI 7 in/3 out, 8K/60Hz, 4K/120Hz
- Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update
- ESS SABRE ES9007S Premier Audio DAC for high performance conversion
- Voice control with Alexa and Google Assistant devices. *Availability varies by region
BREATHTAKING SOUND
SURROUND:AI
Analyses the scene of the contents and optimizes the surround effect of distinct sound elements such as background music, dialogue, and sound effects. Its like having a professional sound engineer tune the sound according to the scene. 64-bit processing with Qualcomm QCS407.
Crafted for Clarity
The newly designed Anti Resonance Technology (A.R.T.), H-shaped Cross Frame and mechanical structure are a rock-solid defense against internal and external vibrations that affect the sound. Experience crystal clear sound that moves you, all while your AV receiver stays perfectly still.
High-Quality Digital Components
Qualcomm QCS407 takes your AV receivers surround sound to the next level with support for Dolby Atmos and DTS:X. With SABRE ES9007S Premier Audio DAC, you get extraordinary signal-to-noise ratio and high dynamic range for professional quality audio.
Zone2 including HDMI
Featuring Zone2 compatible speaker terminals, this system can send the same (or even different) AV contents playing in the main room for playing in another room. For example, if youve got speakers installed in your bedroom or kitchen, you can go to that other room and enjoy listening to the same or different main room content.
Specifications:
| Amplifier Section | Channel | 7.2 |
|---|---|---|
| Rated Output Power (1kHz, 1ch driven) | 135 W (8 ohms, 0.9% THD) | |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 110 W (8 ohms, 0.06% THD) | |
| Maximum Effective Output Power (1kHz, 1ch driven) | 165 W (8 ohms, 10% THD) | |
| High Slew Rate Amplifier | Yes | |
| Surround Sound Processing | Surround:AI | Yes |
| CINEMA DSP | Yes (HD3) | |
| DSP Programs | 24 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Virtual Surround Back Speaker | Yes | |
| Dialogue Lift | Yes | |
| SILENT CINEMA / Virtual CINEMA DSP | Yes | |
| Dolby Atmos | Yes | |
| Dolby Atmos Height Virturalizer | Yes | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Surround | Yes | |
| DTS:X | Yes | |
| DTS-HD Master Audio | Yes | |
| Auro 3D | N/A | |
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes | |
| Compressed Music Enhancer | Yes | |
| High-resolution Music Enhancer | Yes | |
| YPAO multi-point measurement | Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement | |
| YPAO Volume | Yes | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | |
| A.R.T. Wedge | Yes | |
| Bi-amp capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| DA Converter | 384 kHz / 32-bit ESS Hyperstream DAC ES9007S | |
| Video Features | HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes | |
| HDMI Pass-through | 8K60AB, 4K120AB (via future update) | |
| HDMI Up-scaling | Yes, up to 8K (via firmware update) | |
| HDMI Up-conversion | N/A | |
| Dolby Vision | Yes | |
| HDR 10 | Yes (via firmware update) | |
| VRR/ALLM/QMS/QFT | Yes (via firmware update) | |
| Video adjustment | N/A | |

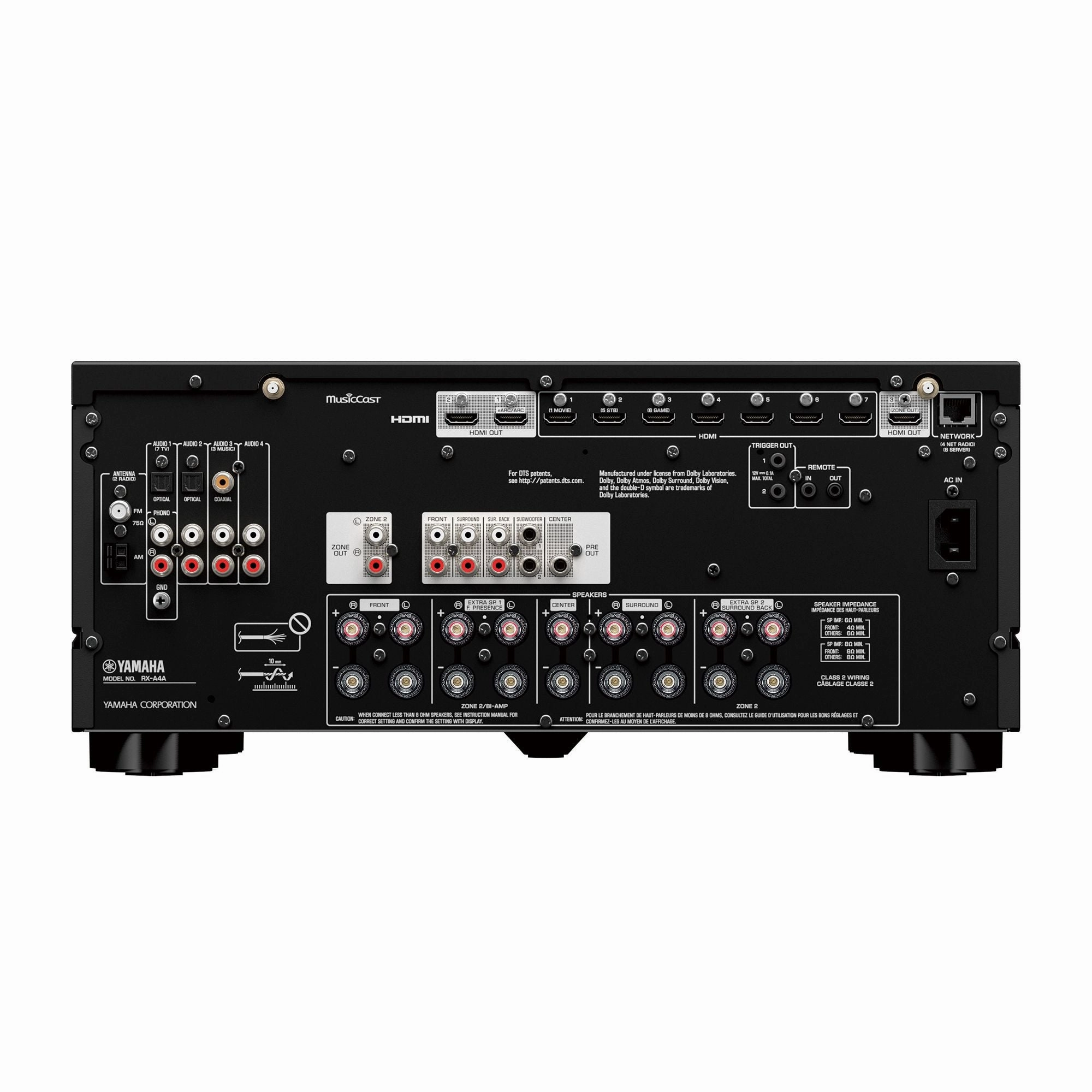

| Connectivity | MusicCast Surround | Yes |
| HDMI Input/Output | 7 / 3 (HDMI2.1 / HDCP2.3) | |
| HDMI CEC | Yes | |
| USB Input | Yes | |
| Network Port | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay 2 | Yes | |
| Bluetooth | Yes (SBC / AAC) | |
| Front AV Input | USB | |
| Digital Audio Input/Output: Optical | 2 / 0 | |
| Digital Audio Input/Output: Coaxial | 1 / 0 | |
| Analog Audio Input/Output | 4 / 0 | |
| Phono Input | Yes | |
| XLR Terminal | N/A | |
| Component Video Input/Output | N/A | |
| Composite Video Input/Output | N/A | |
| Preout | 7.2-ch | |
| Headphone Output | 1 | |
| Tuner Section | FM/AM Tuner | Yes (Availability varies by region.) |
| DAB Tuner | Yes (Availability varies by region.) | |
| User Interface | On-screen display | Graphical User Interface |
| SCENE | SCENE PLUS (8 sets) | |
| App Control | Yes (iPhone / iPad / Android phone / tablet) | |
| Web Browser Control | Yes | |
| Remote Control Unit | Yes | |
| Zone Control | Zone 2 Audio Output | Preout / HDMI |
| Zone 3 Audio Output | N/A | |
| Zone 4 Audio Output | N/A | |
| Powered Zone | Zone 2 | |
| Zone Video Output | HDMI | |
| Zone B Output | N/A | |
| Zone GUI | N/A | |
| RS-232C Interface | N/A | |
| 12V Trigger Output | 2 | |
| Remote (IR) Input/Output | 1 / 1 | |
| Party Mode | Yes | |
| General | Standby Power Consumption (IR only) | <0.4 W |
| Auto Power Standby | Yes | |
| ECO mode | Yes | |
| Dimensions (W x H x D) | 435 W x 191 H x 442 D mm (with antenna up:435 W x 270 H x 442 D mm);17-1/8"W x 7-1/2"H x 17-3/8"D (with antenna up:17-1/8"W x 10-5/8"H x 17-3/8"D) | |
| Weight | 16.2 kg; 35.7 lbs. |
