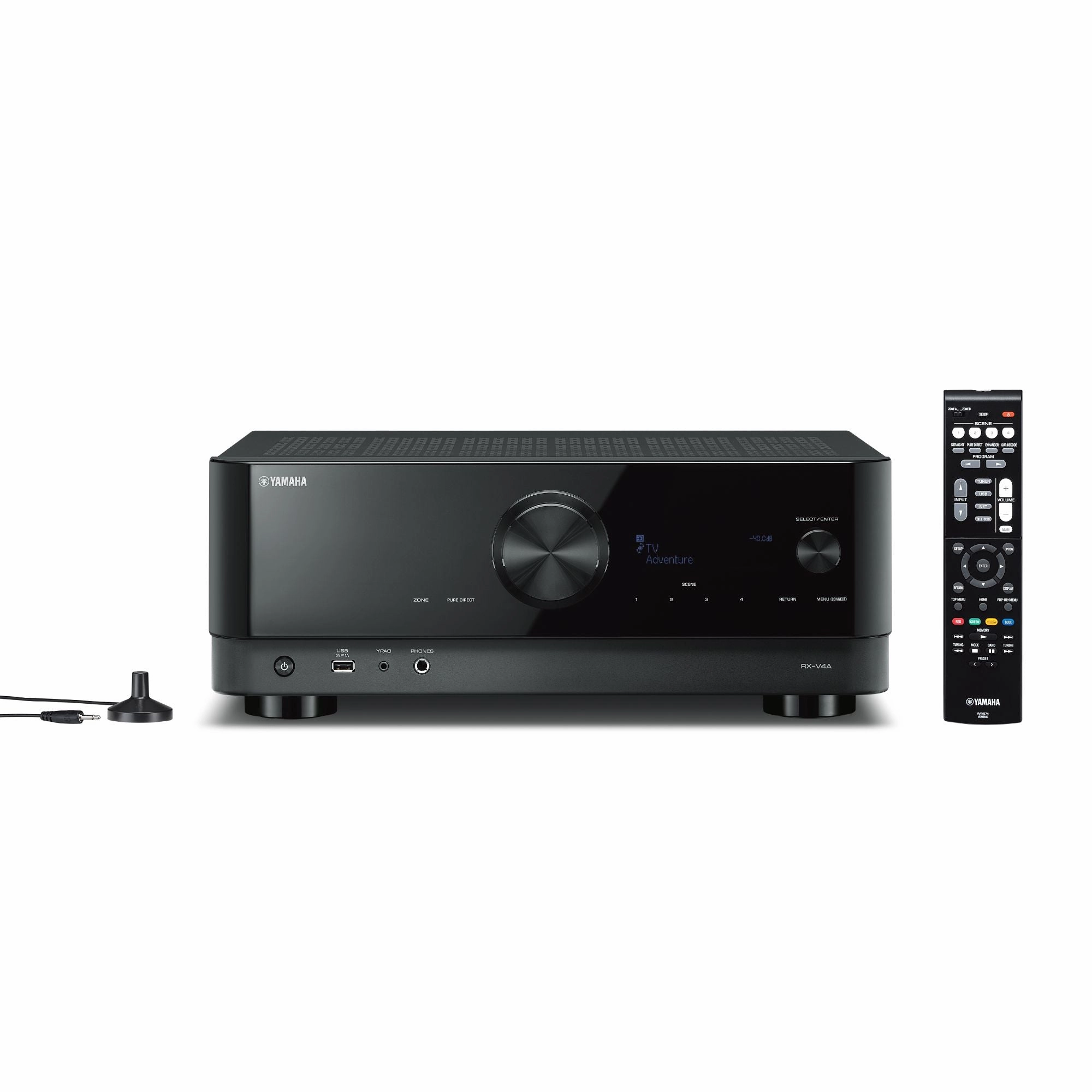

Yamaha RX-V4A 5.2 Channel AV Receiver
V4A - 5.2 ch AV receiver with CINEMA DSP 3D, HDMI 4-in/1-out, wireless surround.
- 5.2 Channel powerful surround sound
- Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update
- Voice control with Alexa and Google Assistant devices. *Availability varies by region
- MusicCast Surround capable - add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
- HD Audio with CINEMA DSP 3D
- YPAO sound optimisation
CINEMA DSP 3D for Movie, Music and Game
This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies, and enter a world of profound theater sound.
HDR10 *
HDR10 signals not only dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis, it also provides, in a small amount of metadata, the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creators intent.
*This function is available via future update.
4K/120Hz*
4K/120Hz enables ultra-fast motion UHD images to be crisp and razor sharp; allowing high-performance gaming, sport and action movies to benefit significantly.
*This function is available via future update.
Multi-room Audio - MusicCast
Imagine sharing all the music you love throughout the home no matter the format. From your favorite vinyl to AirPlay, Bluetooth to music streaming services* and even sound from your TV, MusicCast has it covered.
*Music streaming service availability varies by region.
| Amplifier Section | Channel | 5.2 |
|---|---|---|
| Rated Output Power (1kHz, 1ch driven) | 115 W (6 ohms, 0.9% THD) | |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 80 W (6 ohms, 0.06% THD) | |
| Maximum Effective Output Power (1kHz, 1ch driven) | 145 W (6 ohms, 10% THD) | |
| High Slew Rate Amplifier | Yes | |
| Surround Sound Processing | Surround:AI | N/A |
| CINEMA DSP | Yes | |
| DSP Programs | 17 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Virtual Surround Back Speaker | N/A | |
| Dialogue Lift | N/A | |
| SILENT CINEMA / Virtual CINEMA DSP | Yes | |
| Dolby Atmos | N/A | |
| Dolby Atmos Height Virturalizer | N/A | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Surround | N/A | |
| DTS:X | N/A | |
| DTS-HD Master Audio | Yes | |
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes | |
| Compressed Music Enhancer | Yes | |
| High-resolution Music Enhancer | N/A | |
| YPAO multi-point measurement | N/A | |
| YPAO Volume | N/A | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | |
| A.R.T. Wedge | N/A | |
| Bi-amp capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| DA Converter | 384 kHz / 32-bit BB PCM5101A | |
| Video Features | HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes | |
| HDMI Pass-through | 8K60B, 4K120AB (via future update) | |
| HDMI Up-scaling | Yes up to 4K | |
| HDMI Up-conversion | N/A | |
| Dolby Vision | Yes | |
| HDR 10 | Yes (via future update) | |
| VRR/ALLM/QMS/QFT | Yes (via future update) | |
| Video adjustment | N/A | |
| Connectivity | MusicCast Surround | Yes |
| HDMI Input/Output | 4 / 1 | |
| HDMI CEC | Yes | |
| USB Input | Yes | |
| Network Port | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay 2 | Yes | |
| Bluetooth | Yes (SBC / AAC) | |
| Front AV Input | USB | |
| Digital Audio Input/Output: Optical | 1 / 0 | |
| Digital Audio Input/Output: Coaxial | 1 / 0 | |
| Analog Audio Input/Output | 3 / 0 | |
| Phono Input | N/A | |
| XLR Terminal | N/A | |
| Component Video Input/Output | N/A | |
| Composite Video Input/Output | N/A | |
| Preout | 0.2-ch | |
| Headphone Output | 1 | |
| Tuner Section | FM/AM Tuner | Yes (Availability varies by region.) |
| DAB Tuner | Yes (Availability varies by region.) | |
| User Interface | On-screen display | Graphical User Interface |
| SCENE | Yes (4 sets) | |
| App Control | Yes (iPhone / iPad / Android phone / tablet) | |
| Web Browser Control | N/A | |
| Remote Control Unit | Yes | |
| Zone Control | Zone 2 Audio Output | N/A |
| Zone 3 Audio Output | N/A | |
| Zone 4 Audio Output | N/A | |
| Powered Zone | N/A | |
| Zone Video Output | N/A | |
| Zone B Output | N/A | |
| Zone GUI | N/A | |
| RS-232C Interface | N/A | |
| 12V Trigger Output | N/A | |
| Remote (IR) Input/Output | N/A | |
| Party Mode | N/A | |
| General | Standby Power Consumption (IR only) | 0.1 W |
| Auto Power Standby | Yes | |
| ECO mode | Yes | |
| Dimensions (W x H x D) | 435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D) | |
| Weight | 8.8 kg; 19.4 lbs. |
