TRUE SOUND DOLBY ATMOS
Developed from the ground up with Yamaha True Sound engineering, the SR-B40A draws on all we know about sound and sound field creation. Dolby Atmos further enhances the listening experience, immersing you in spacious sound that you can feel all around you.
EXPERIENCE THE WORLD OF IMMERSIVE AUDIO
Get the most out of a rapidly growing universe of Dolby Atmos content available from streaming providers and game publishers. The precision-crafted speaker drivers and advanced high-quality audio reproduction technology employed by the SR-B40A, combined with Dolby Atmos, create a sound field that envelops and transports you deeper into your favorite TV shows, movies, games and music.
CUSTOMIZED JUST FOR YOU

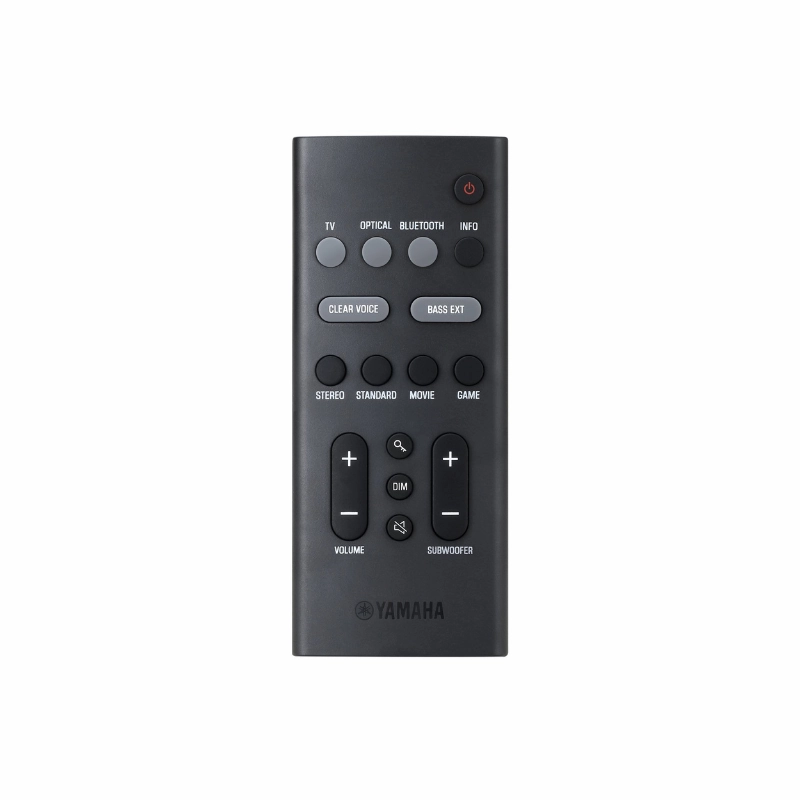

The SR-B40A gives you several ways to customize the sound to your content and personal taste: choose from four Sound Modes, adjust the subwoofer level with an independent control on the remote and dial in the EQ just the way you like it using tone controls in the app.
DriversCenter unit: Front L/R: 1.8" cone 4, Tweeter: 1" dome 2, Subwoofer: 6.25"
Output Power200 W (Front L/R: 50 W 2-ch,Subwoofer: 100 W)
Power ConsumptionCenter unit: 25 W, Subwoofer: 20 W
Standby Power ConsumptionCenter unit: 0.3 W (HDMI control off, Bluetooth standby off), 0.6 W (HDMI control on, Bluetooth standby on) Subwoofer: 0.8 W
Dimensions (W x H x D)Center unit: 35-7/8" 2-5/8" 5-1/4", Subwoofer: 7-5/8" 16-1/2" 16"
WeightCenter unit: 6.4lbs, Subwoofer: 17.9lbs
HDMI1 out (eARC)
Digital Optical Yes
Subwoofer outputNo
Analog AudioNo
4K Pass-throughNo
eARC/ARCeARC/ARC
CEC Yes
Auto Lip-Sync No
Virtual Surround TechnologyDolby Atmos
Surround ModeStereo, Standard, Movie, Game
Compressed Music Enhancer No
Bass Extended Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Digital Yes
Dolby Pro Logic II No
DTS Digital Surround No
Built-in music streaming services Bluetooth
Wi-Fi No
