The Audio-Technica AT-VMx series enhances its premium dual moving magnet cartridges with greater warmth, detail, and realism. Featuring dual magnets aligned to the stereo groove, it delivers excellent channel separation and frequency response. Upgrades like PCUHD copper wire and reduced coil turns improve clarity and transient response. The paratoroidal coil design and center shield plate reduce crosstalk for a cleaner stereo image. Practical features include easy-mount threaded inserts and a V-cut stylus guard for precise placement, making the VMx series a refined, user-friendly choice for high-quality vinyl playback.

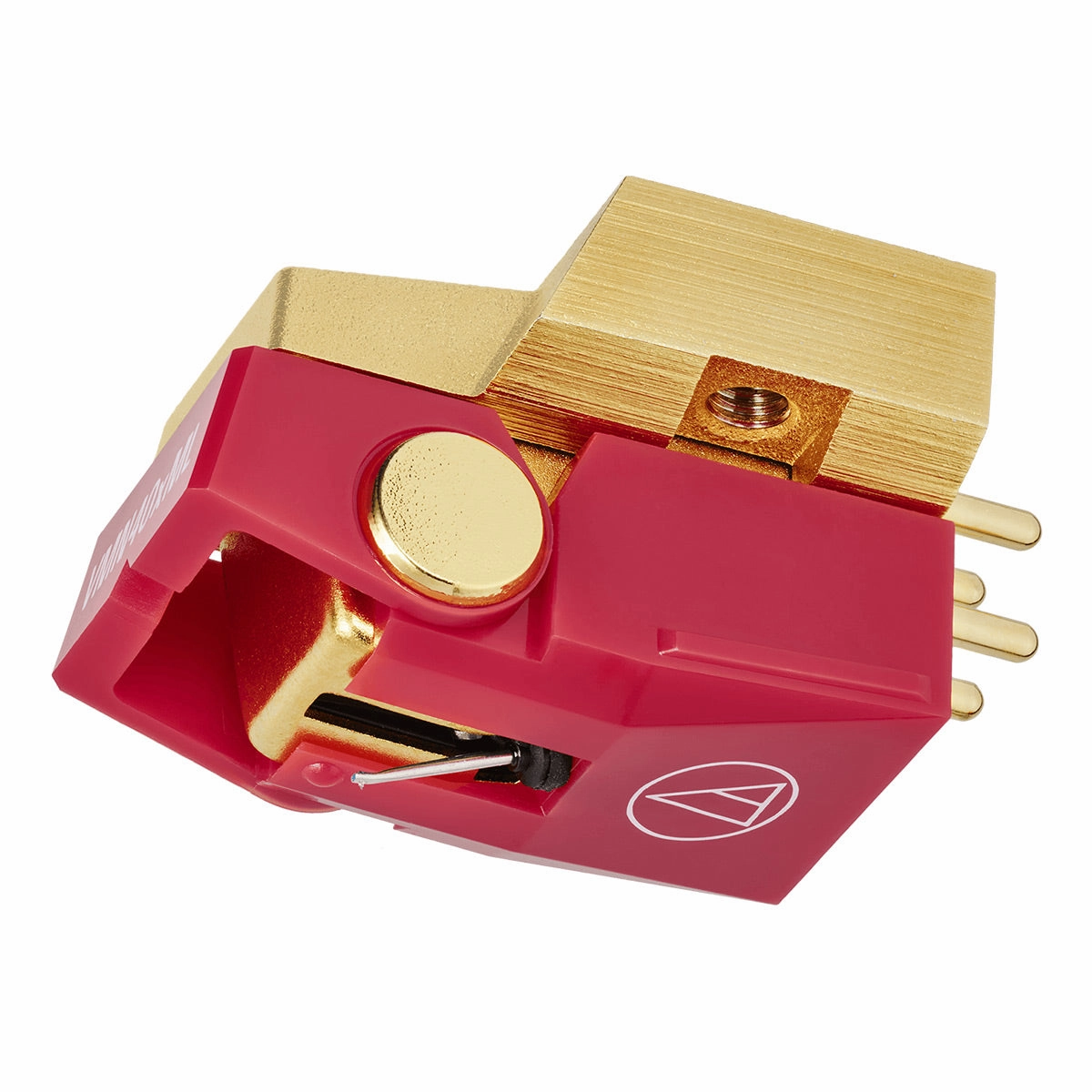

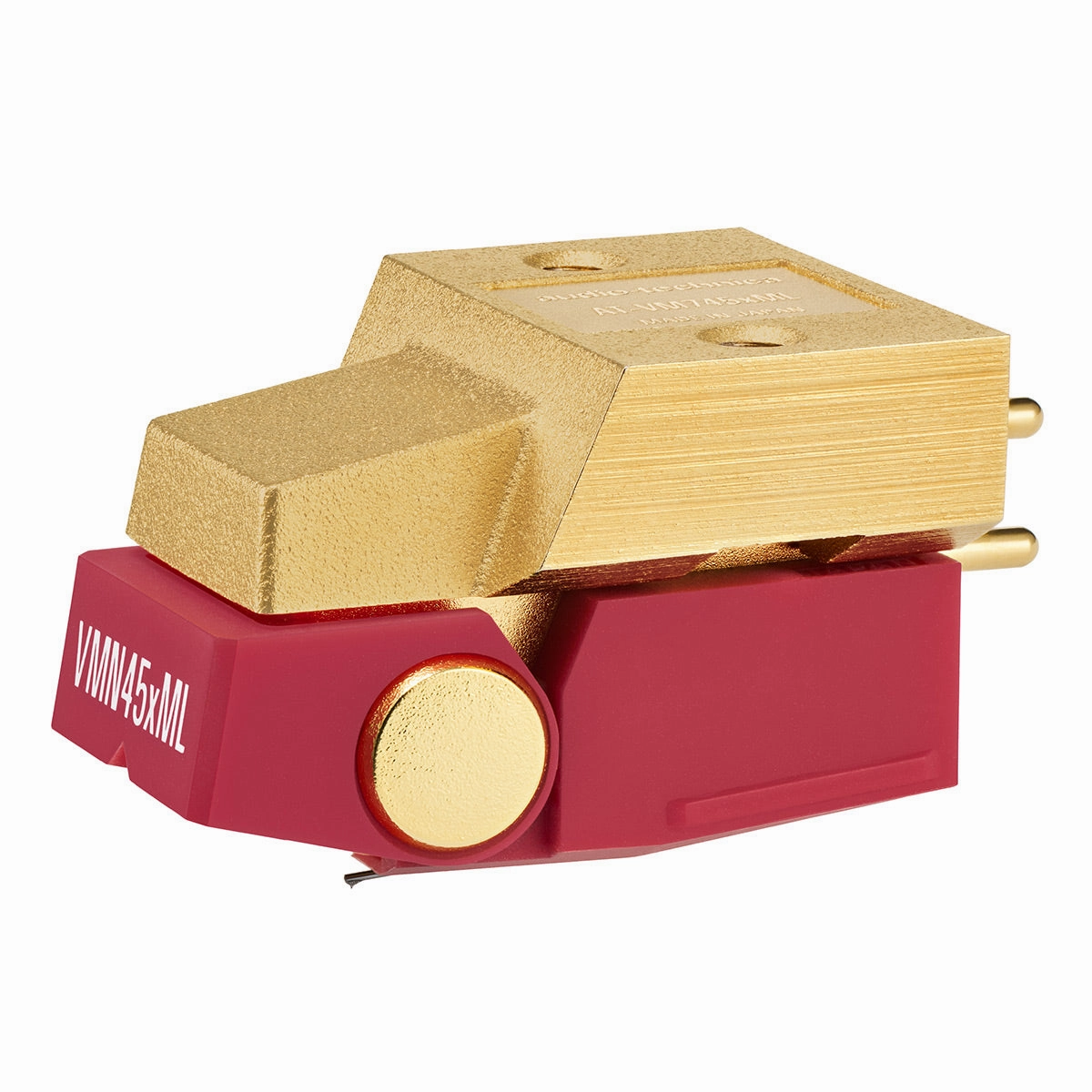

The new, lightweight microlinear stylus of the AT-VM745xML allows it to trace the record groove with incredible accuracy, resulting in audio reproduction that elliptical and conical styli simply cant match. This nuanced reproduction is further enhanced by the adoption of a solid boron cantilever, which transmits signals about 2.5 times faster than the previous models aluminum pipe, resulting in more accurate reproduction of dynamic musical passages.
Features
- AT-VM745xML VMx Microlinear Phono Cartridge
- MicrolinearStylus
- Solid Boron Cantilever and Metal Body
- Paratoroidal Coils Improve Channel Separation, Channel Balance, and Transient Response
- Center Shield Plate Reduces Crosstalk
- Durable Low-Resonance Polymer Housing
- Compatible with Any Turntable Headshell That Accepts 1/2 Cartridges
All in the Design
The Vertical Dual Magnet (MM) design closely mirrors the cutter head used to make the vinyl master. The cutter head uses two transducer coils, mounted perpendicular to each other at 45 from horizontal, to cut the channel: one in each wall of the 90 record groove. AT-VMx cartridges use the same 90 V-Shape configuration as the cutter head. This way, the cartridge achieves accurate tracking, excellent channel separation, high definition of the stereo image and extreme clarity over the entire audio spectrum.
Easy to Install & Use

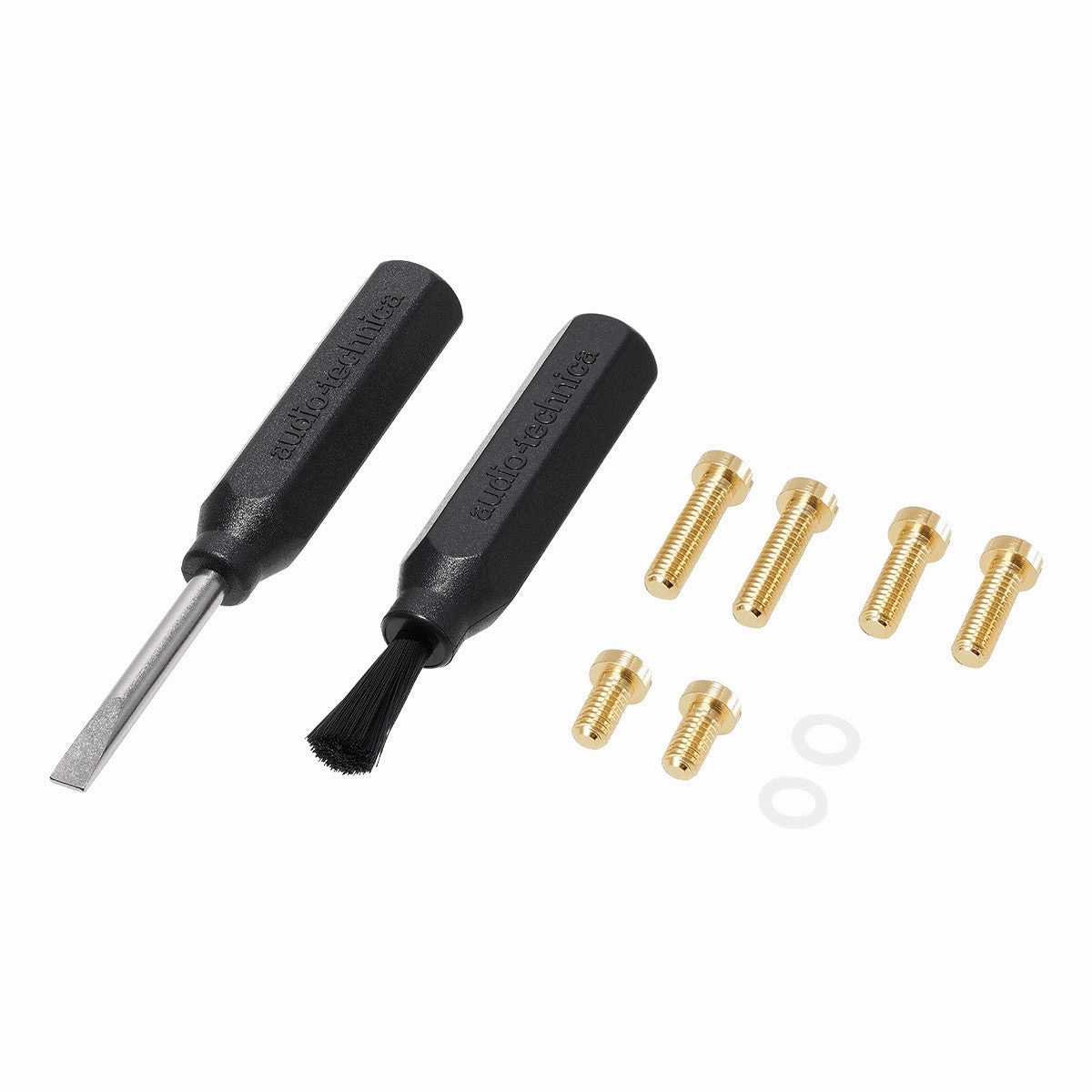

Each VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the styluss position when lowering it onto a record.
Interchangeable Styli
Since all AT-VMx series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMx replacement stylus (excluding mono models) with any VMx cartridge for easy experimentation with sound characteristics.
Highly Efficient Generator
The paratoroidal coil construction of the cartridges generator two PCUHD coils per channel, one stacked behind the other greatly improves electromagnetic performance, while a slight reduction in coil turns* enhances transient response for clean, lifelike sound.
*Compared to VM series cartridges.
Solid Boron Cantilever and Metal Body
The three premium VMx models (AT-VM760x, AT-VM750x, AT-VM745x) feature a solid boron cantilever. Naturally lightweight and rigid, boron transmits signals from the record groove faster than an aluminum cantilever. The result is more accurate sound reproduction thats particularly noticeable on dynamic musical passages. The die-cast aluminum body reduces vibrations and resonance.
