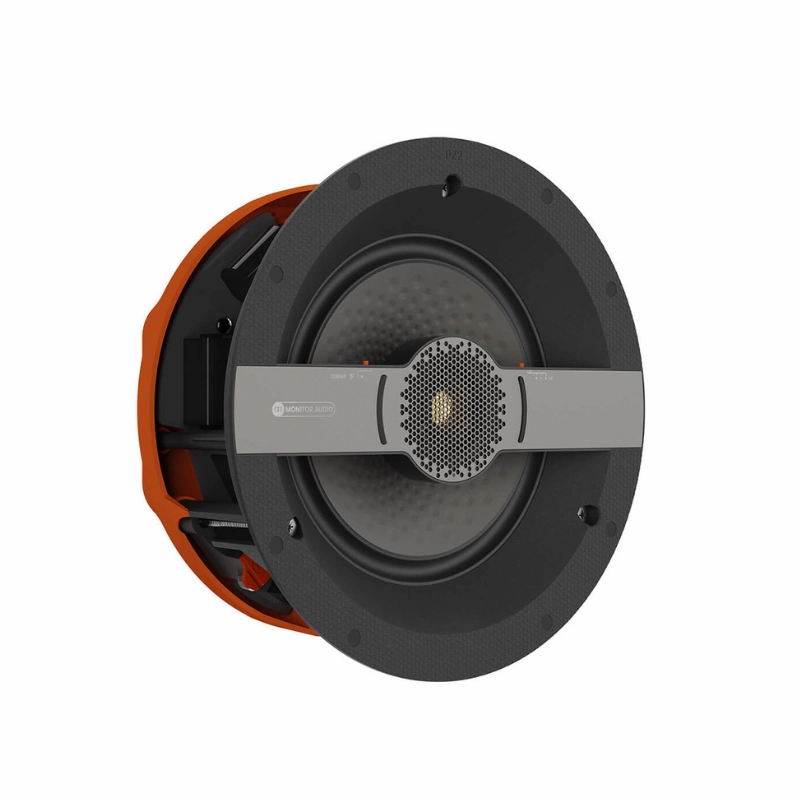

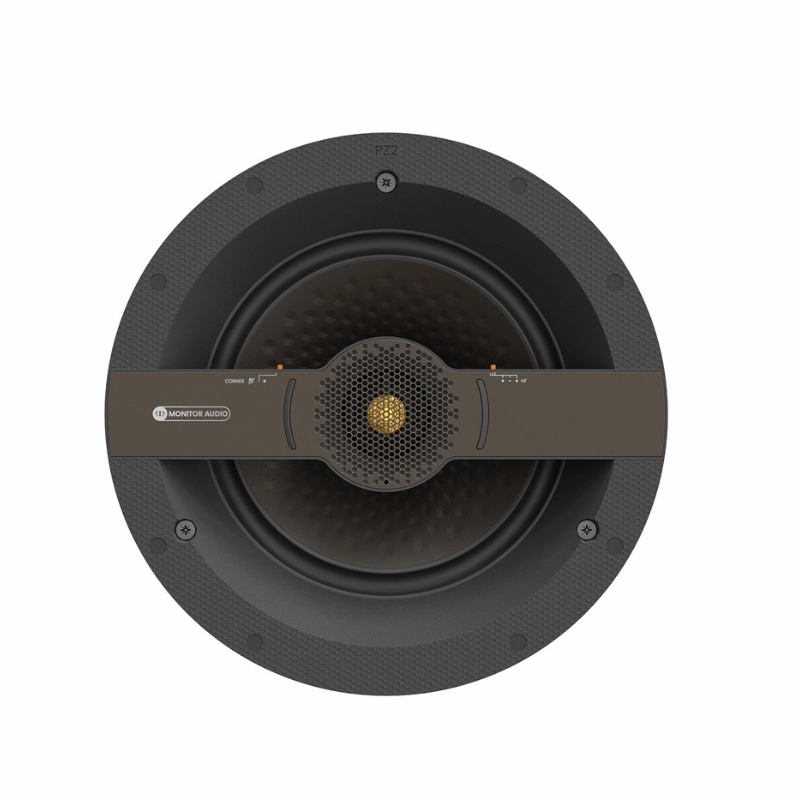

C2M
This medium-sized Tier 2 in-ceiling loudspeaker is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. It has a cut out dimension of 212 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for installations where pristine acoustic performance is required.
- Two-way design
- 1 x 1"(25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 7"(178 mm) RST II mid-bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specifications
System Format: 2Way
Channels: 1
Frequency Response, Installed (-6dB): 35 Hz 35 kHz
Nominal Impedance: 8 ohm
Minimum Impedance (20Hz to 20kHz): 6.6 Ohm @ 150 Hz
Sensitivity (2.83Vrms@1m, Installed): 86 dB
Maximum Peak SPL (single speaker @ 1m Z-Weighted): 114 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 75 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 40 150 W
Drive Unit Complement:
- 1 x 7" (178 mm) RST II mid-bass driver
- 1 x 1" (25 mm) C-CAM tweeter
Crossover Frequency: LF/HF: 2.25 kHz
Mounting Depth: 99 mm (37/8")
Cut-Out Hole Diameter: 212 mm (83/8")
External Dimensions (Including Grille - H x W x D): 242 x 242 x 103 mm (91/2 x 91/2 x 44/16")
Weight (each): 2 kg (4 lb 6 oz)
Pre-Construction Bracket: CM-B
Cabinet Finish: Matt black & Orange & Bronze
Sold As: Single Unit
Switches:
- Corner Switch: On/Off
- HF Switch: - /0/
