Specifications
- Design: Ultra-Class-D power amplifier
- Amplifier Power Output:
- 2,550 watts Dynamic Peak / 850 watts RMS
- Amplifier Features:
- Auto-On / Off
- Trigger-On / Off
- Soft clipping
- Electrical shorting protection
- Thermal protection
- Finishes: Black

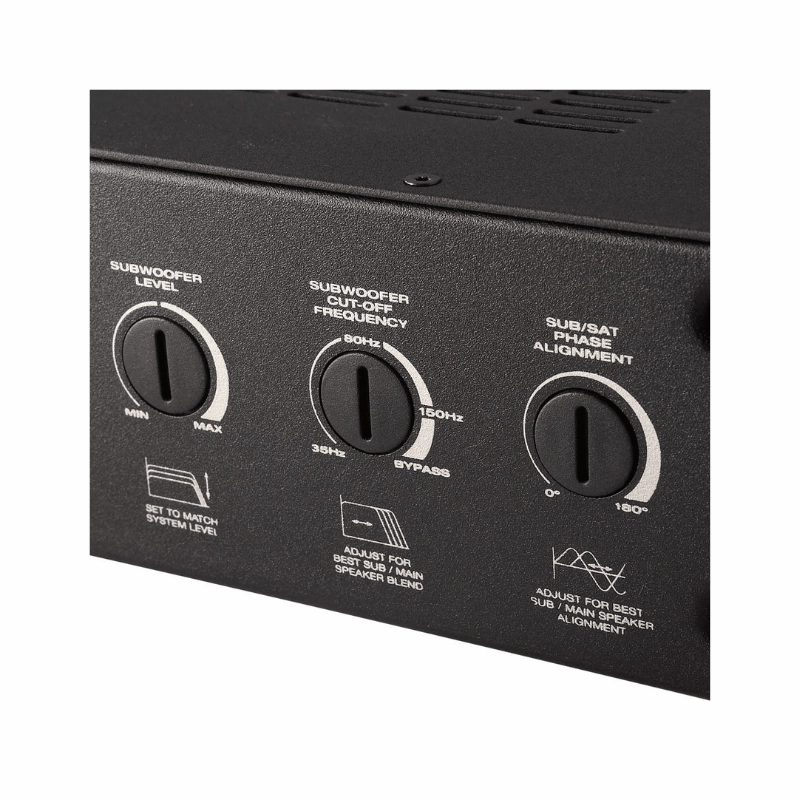

- Low Pass Filter Frequency: Variable 35 Hz - 200 Hz; Bypass Option
- Sub / Sat Phase Alignment: Variable 0 - 180

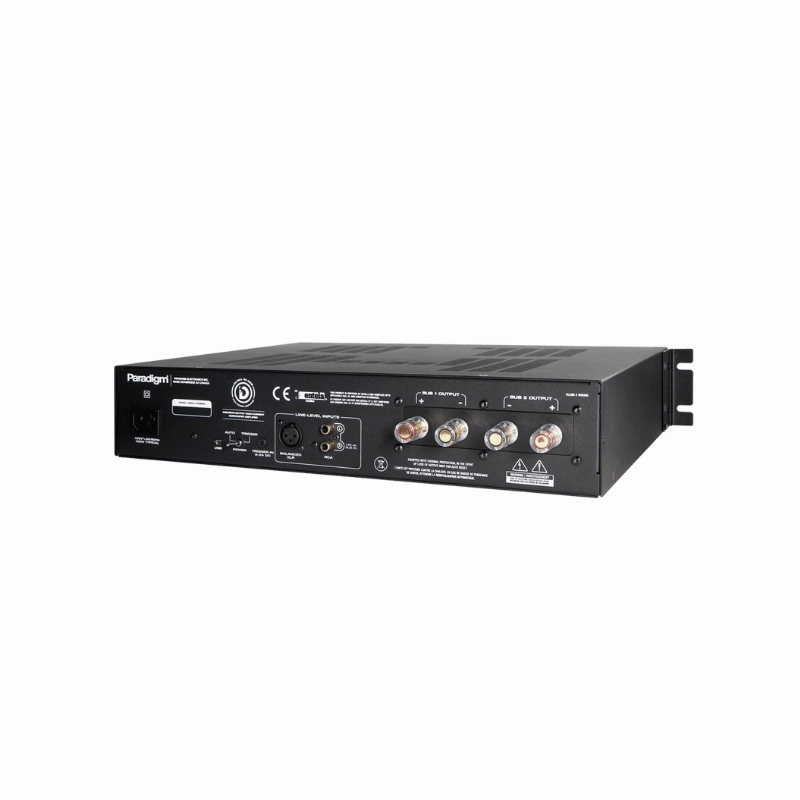

- Inputs: RCA or Balanced XLR. From Sub-Out / LFE-Out of receiver, processor or other line-level source
- Dimensions (including rack ears for mounting in 19" rack): 3.5" 17" 14.75" (8.9 cm 43.2 cm 37.5 cm)
- Weight: 16.3 lbs. (7.4 kg)
