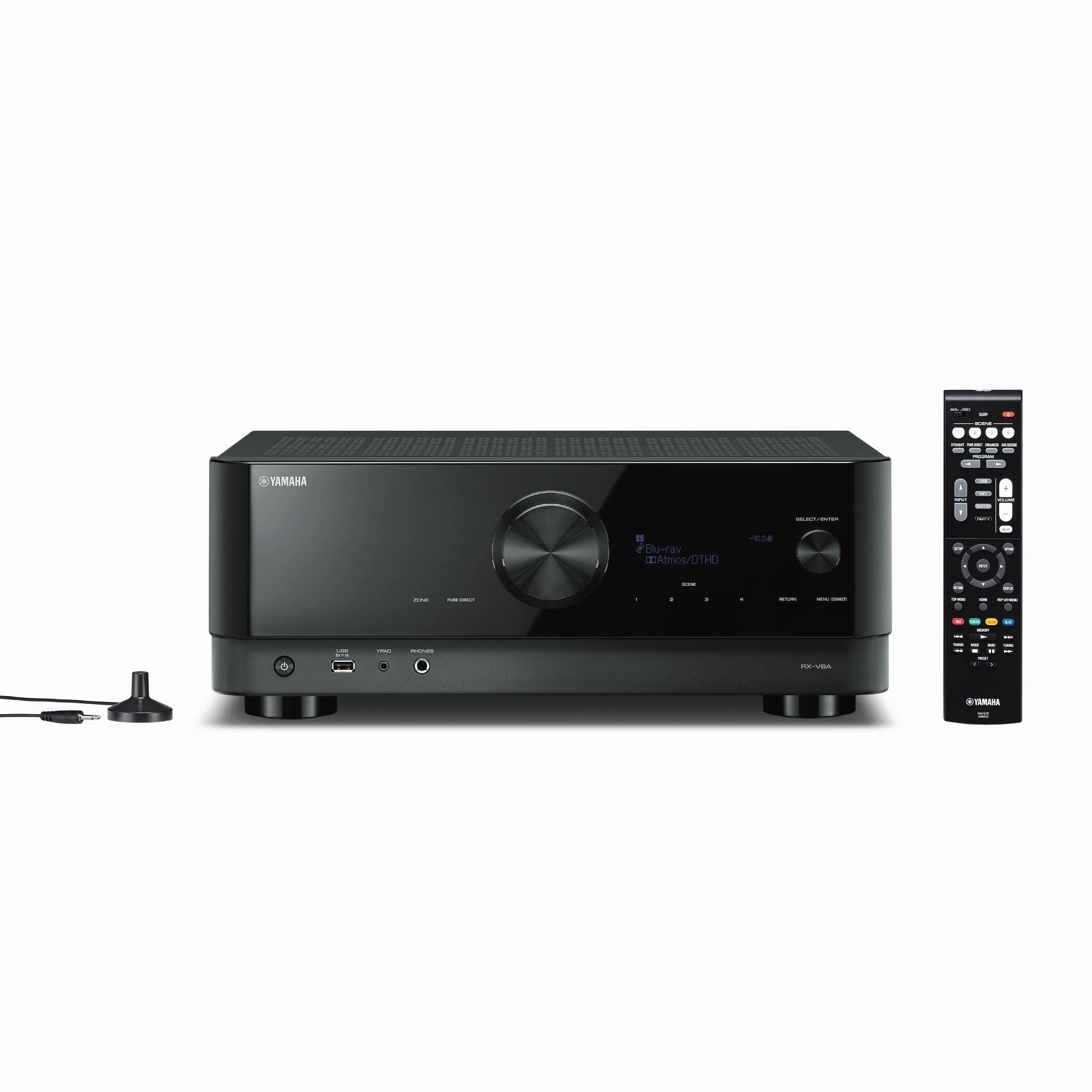

Yamaha RX-V6A 7.2 Channel AV Receiver
V6A - 7.2 ch AV receiver with CINEMA DSP 3D, HDMI 7-in/1-out, wireless surround.
- 7.2 Channel powerful surround sound with Zone2
- Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- Dolby Atmos with height virtualization via FW Update
- HDMI 7 in/1 out, 4K/120Hz
- Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update
- Voice control with Alexa and Google Assistant devices. *Availability varies by region
- MusicCast Surround capable - add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
- YPAO Reflected Sound Control (R.S.C.) sound optimisation
UNPARALLELED SOUND
Dolby Atmos with Height Virtualizer*
Puts you at the center of the action by positioning sounds to different points in your room, including from above. *This function is available via future update.
CINEMA DSP 3D
Incorporates extensive sound field data from world famous concert halls and music clubs to reproduce the same big theater acoustics within the walls of your home.
Music Enhancer
Restores compressed audio so it sounds the way it was intended to be heard.
High Slew Rate Amplifier
Responds to rapid changes in input level for precise and stable signal transmission.MOVIES AND GAMES LIKE NEVER BEFORE
HDR10 *
Provides deeper contrast and more realistic images that stay true to the creators intent.
4K/120Hz*
Enables a higher refresh rate, giving you a smoother and more realistic viewing experience.
Gaming-dedicated Functions (ALLM,VRR,QMS,QFT)*
Ensures seamless motion and transitions to enhance your performance.
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
Voice Control Systems
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device. *Availability varies by region.
Specifications:
| RX-V6A | ||
|---|---|---|
| Amplifier Section | Channel | 7.2 |
| Rated Output Power (1kHz, 1ch driven) | 125 W (8 ohms, 0.9% THD) | |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 100 W (8 ohms, 0.06% THD) | |
| Maximum Effective Output Power (1kHz, 1ch driven) | 150 W (8 ohms, 10% THD) | |
| High Slew Rate Amplifier | Yes | |
| Surround Sound Processing | Surround:AI | N/A |
| CINEMA DSP | Yes | |
| DSP Programs | 17 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Virtual Surround Back Speaker | Yes | |
| Dialogue Lift | Yes | |
| SILENT CINEMA / Virtual CINEMA DSP | Yes | |
| Dolby Atmos | Yes | |
| Dolby Atmos Height Virturalizer | Yes (via future update) | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Surround | Yes | |
| DTS:X | Yes | |
| DTS-HD Master Audio | Yes | |
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes | |
| Compressed Music Enhancer | Yes | |
| High-resolution Music Enhancer | N/A | |
| YPAO multi-point measurement | Yes | |
| YPAO Volume | Yes | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | |
| A.R.T. Wedge | N/A | |
| Bi-amp capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| DA Converter | 384 kHz / 32-bit BB PCM5102A | |
| Video Features | HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes | |
| HDMI Pass-through | 8K60B, 4K120AB (via future update)*HDMI1-3 | |
| HDMI Up-scaling | Yes up to 4K | |
| HDMI Up-conversion | N/A | |
| Dolby Vision | Yes | |
| HDR 10 | Yes (via future update) | |
| VRR/ALLM/QMS/QFT | Yes (via future update) | |
| Video adjustment | N/A | |
| Connectivity | MusicCast Surround | Yes |

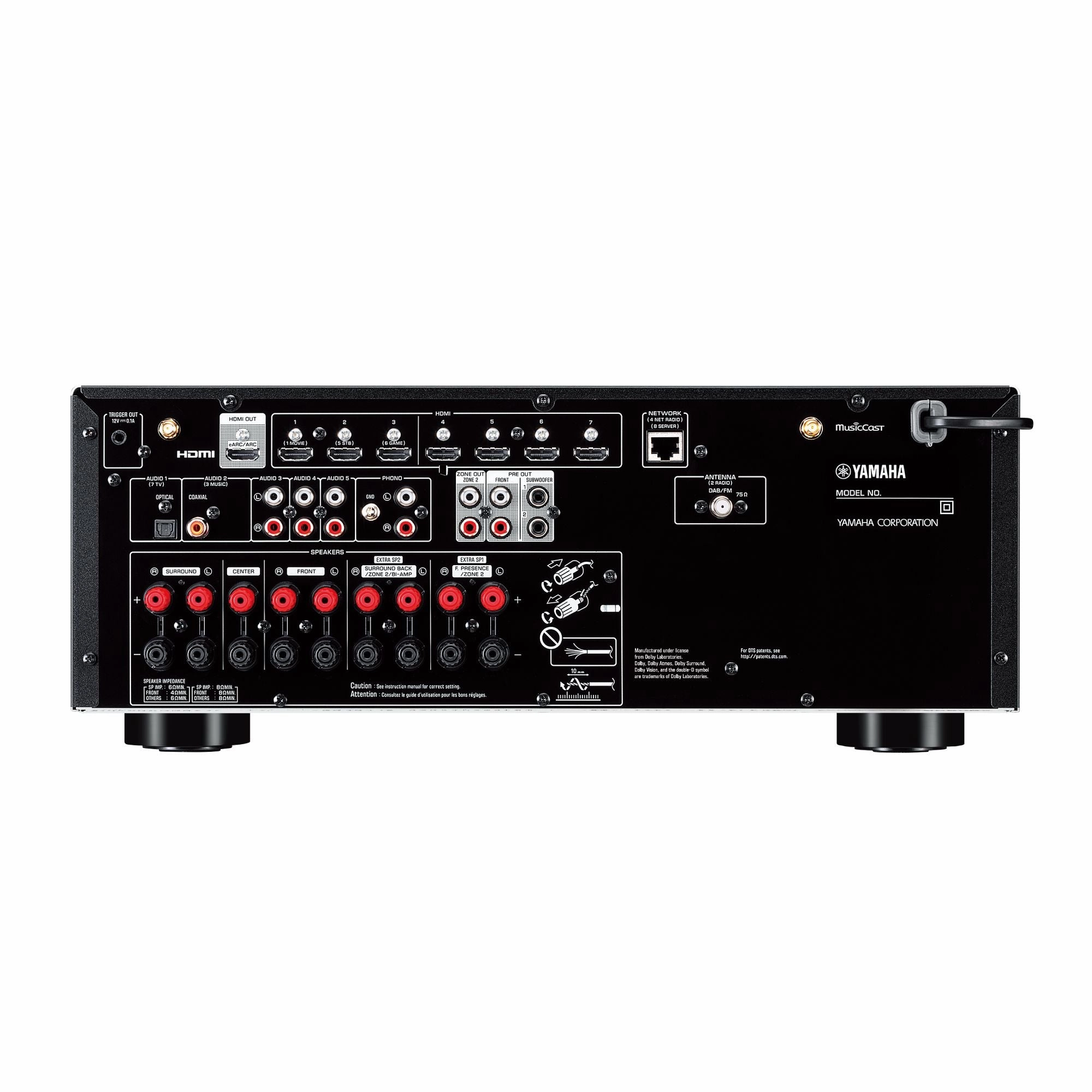

| HDMI Input/Output | 7 / 1 | |
| HDMI CEC | Yes | |
| USB Input | Yes | |
| Network Port | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay 2 | Yes | |
| Bluetooth | Yes (SBC / AAC) | |
| Front AV Input | USB | |
| Digital Audio Input/Output: Optical | 1 / 0 | |
| Digital Audio Input/Output: Coaxial | 1 / 0 | |
| Analog Audio Input/Output | 4 / 0 | |
| Phono Input | Yes | |
| XLR Terminal | N/A | |
| Component Video Input/Output | N/A | |
| Composite Video Input/Output | N/A | |
| Preout | 2.2-ch | |
| Headphone Output | 1 | |
| Tuner Section | FM/AM Tuner | Yes (Availability varies by region.) |
| DAB Tuner | Yes (Availability varies by region.) | |
| User Interface | On-screen display | Graphical User Interface |
| SCENE | Yes (8 sets) | |
| App Control | Yes (iPhone / iPad / Android phone / tablet) | |
| Web Browser Control | Yes | |
| Remote Control Unit | Yes | |
| Zone Control | Zone 2 Audio Output | Preout |
| Zone 3 Audio Output | N/A | |
| Zone 4 Audio Output | N/A | |
| Powered Zone | Zone 2 | |
| Zone Video Output | N/A | |
| Zone B Output | N/A | |
| Zone GUI | N/A | |
| RS-232C Interface | N/A | |
| 12V Trigger Output | 1 | |
| Remote (IR) Input/Output | N/A | |
| Party Mode | Yes | |
| General | Standby Power Consumption (IR only) | 0.1 W |
| Auto Power Standby | Yes | |
| ECO mode | Yes | |
| Dimensions (W x H x D) | 435 W x 171 H x 377 D mm (with antenna up:435W x 245H x 377D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D) | |
| Weight | 9.8 kg; 21.6 lbs. | |
